K24 flow meter
Connect:1" BSPF/NPT thread
display:5 digital lcd screen
Fuction:zero reset,summation,flow rate display
Application:DEF,diesel,gasoline,chemicals,corrosity liquid,milk,methanol and etc transfer.
Easy battery replaced.

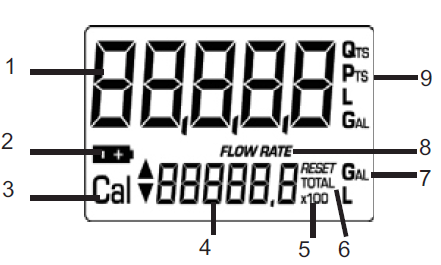

1. Partial register (5 figures with moving comma FROM 0.1 to 99999) indicating the volume dispensed since the reset button was last pressed;
2. Indication of battery charge; 3. Indication of calibration mode;
4. Totals register (6 figures with moving comma FROM 0.1 to 999999),that can indicate two types of Total: 4。1。 General Total that cannot be reset (TOTAL) 4。2。 Resettable total (Reset TOTAL)
5. Indication of total multiplication factor (x10 / x100 )
6. Indication of type of total, (TOTAL / Reset TOTAL);
7. Indication of unit of measurement of Totals: L=Litres Gal=Gallons
8。 Indication of Flow Rate mode
9. Indication of unit of measurement of Partial: Qts= Quarts Pts =Pints
